PowerEdge System Components

Slotted System Boards (continued)

More PowerEdge 6400 MB Features

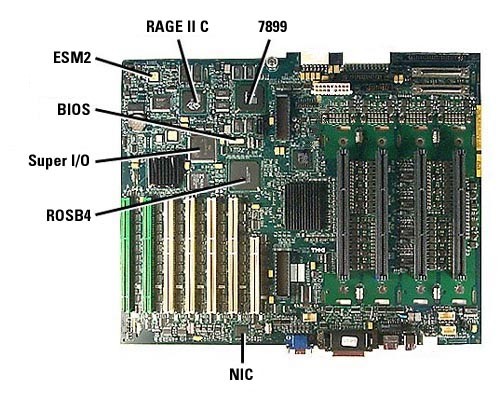

The following list explains the labels on the above photograph, starting at "ROSB4" and moving clockwise around the image.

  • ROSB4 is an IDE controller that is used for the CD-ROM drive on the system. The IDE controller is routed through the 50-pin SCSI connector on the system board.

  • Super I/O is the chipset that controls the basic input and output functions for the system (including serial and parallel ports).

  • BIOS is the CMOS chip that stores the system BIOS.

  • ESM2 is used for system management functions.

  • RAGE II C is the integrated ATI video controller used on the PowerEdge 6400.

  • 7899 is the integrated Adaptec Dual-Channel Ultra 160 SCSI controller found on the PowerEdge 6400.

  • NIC is an integrated network interface card; in the case of the PowerEdge 6400 it is an Intel 82559 (Pro 100+).
